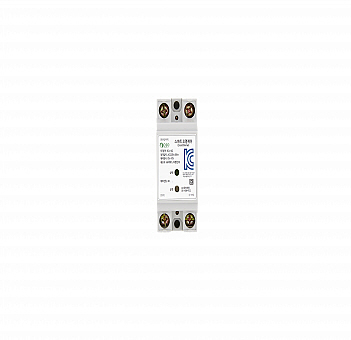

Smart Electric Switch ECL-10Z
The Smart Electric Switch shuts down the electricity of a electronic device at home or building in overload situation. It also transmits real-time power usage data to the Smart Energy Gateway by wireless-communication and can be controlled by manage server and smartphone application.
Features
    • On panel board in isolated building including house, building, restaurant, pension, warehouse, barn, etc.
    • Easy install with no additional wire works to existing building and easy attach/detach when moving or transfer.
    • Power usage monitoring when used with general light switch of panel board.
    • Power usage monitoring when used with heating socket branch on panel board.
    • Electrical input of small motor, heater/cooler and other heating devices.
    • Measures real-time instantaneous power usage, daily/monthly cumulative power usage(predictable electricity rates).
Function
  • Measures input power usage in real-time (instantaneous power, accumulate power, current, voltage, power factor)
  • Input power usage measure of constant AC power
  • Collects power consumption data when user requires
  • Transmits data to the Smart Energy Gateway by using wireless connection
  • Remote power shut down
Specification
제품Specification
Connection ZigBee Connection(Bidirectional)
2.4GHz frequency band, IEEE 802.15.4 / ZigBee PRO standard,
SE/HA Profile support, ZigBee router device, OTA rmware upgrade
Data Encryption 128 bit symmetric key block encryption(AES-128)
Rated current Detects up to 16A
Break current 16A, Shut down AC power with Relay Switch Type
Shut down method Overload sensing
Operating power Under 1W
Dimension 32mm x 70mm x 40mm(Same size as circuit breaker)
Indication Power status indicate on LED
